L-35 Cylinder Parts

Parts listed below are for cylinders with serial numbers ending in L34

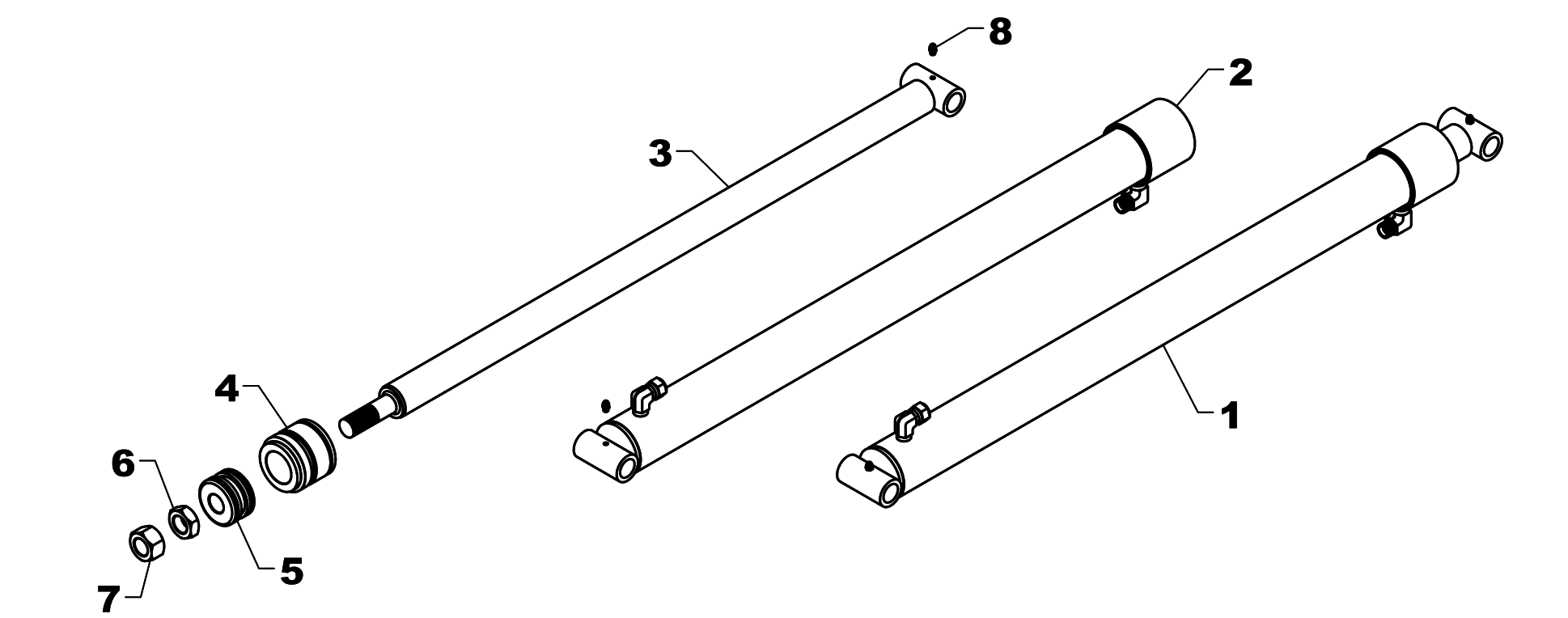

L-35

Ref # and Part # Description
1. L-35 Cylinder
2. L-3501 Barrel
3. L-3510 Ram
4.G-B Gland
5. P-A Piston
6. HJN1614 Jam Nut
7. HFN1614 1" Nut
8. ZER1805 Grease Fitting
9. #5CK (Not Pictured) Seal Kit
