L-9 Cylinder Parts

Parts listed below are for cylinders with serial numbers ending in L9

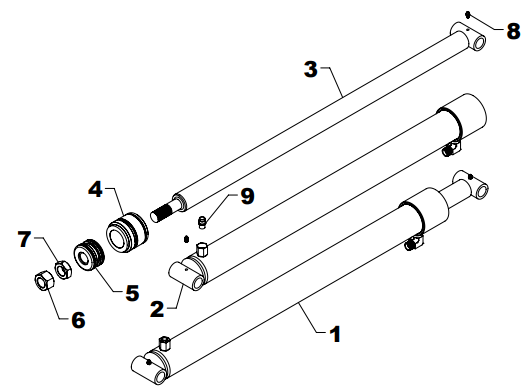

L-9

Ref # and Part #  Description
1. L-9 Cylinder
2. L-901 Barrel
3. L-910 Ram
4. G-B Gland
5. P-A Piston
6. HFN1614 Nut
7. HJN1614 Nut
8. ZER1805 Grease Fitting
9. L-819AS Port
10. #5CK (Not Pictured)  Seal Kit
